In the world of intellectual property, utility patents usually grab the headlines. They protect how things work—the complex gears, the novel chemical compounds, the intricate software algorithms. But here at Artworks IP, we hold a special reverence for the Design Patent.
Why? Because a design patent protects how something looks—its ornamental appearance. And in this specific realm of IP law, the old adage is flip-flopped: a thousand words aren't worth a single picture.
In a design patent application, the drawings are the claim. There are rarely lengthy descriptions to fall back on. If a feature isn't clearly represented in the drawings, it isn't protected. Conversely, if a drawing is ambiguous, inconsistent, or fails to follow the rigid standards of the USPTO (and international bodies), the application will face swift rejection.
Having spent years at the drafting table translating inventors' visions into compliant legal documents, I’ve seen that the difference between a smooth allowance and a messy office action often comes down to linework.
Here is an inside look at the best practices we adhere to at Artworks IP when producing design patent drawings, and the common pitfalls we help our clients avoid.
1. The Tyranny of Consistency

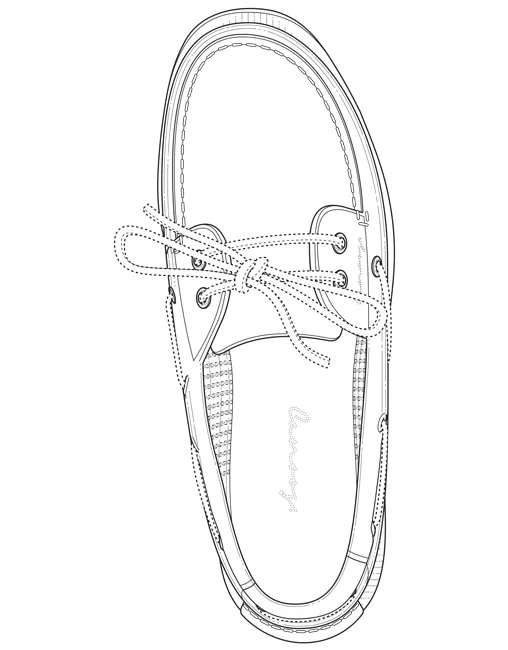

The number one enemy of the design patent is inconsistency. Design patents rely on orthographic projection—showing an object from the front, back, top, bottom, left, and right sides. The USPTO examiner will literally mentally rotate the object based on these views.
Imagine a simple rectangular block with a hole drilled exactly through the center. In your Front View drawing, the hole is clearly depicted in the middle. However, in the corresponding Top View, if the hole is drawn even slightly off-center to the left or right, the drawing is now internally inconsistent.
The examiner cannot determine where the hole actually belongs. Because the views contradict each other, the drawings are deemed "indefinite" and the application will be rejected.
The Best Practice: At Artworks IP, we use projection lines (either manually or via advanced CAD tools) to ensure absolute mathematical alignment across all views. Every feature—the edge of that hole, a corner radius, or a surface transition—must track perfectly from one viewpoint to the next.
2. The Art of Shading: Communicating Contours without Color
A photograph shows shape through light, shadow, and color. A standard patent drawing has none of those luxuries. We have only black ink on white paper to tell the examiner that a surface is curved, flat, spherical, or indented.
Leaving a surface blank. An area without contour lines is interpreted by examiners as being perfectly flat. If your product has a sexy, ergonomic curve but you don't shade it, you've just patented a flat box.

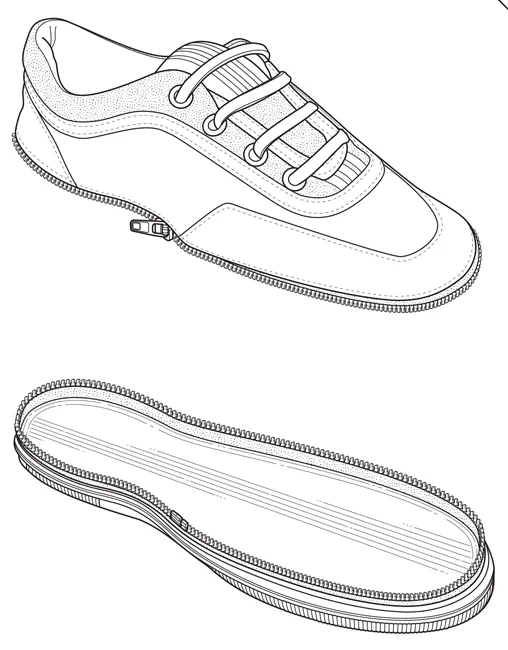

The Best Practice: We utilize specialized shading techniques—tangent shading, stippling (dots), and linear hatching—to communicate three-dimensional form.
Stippling: Often used to suggest matte textures or soft curves.
Linear Shading: Shows sharper contours or highly polished surfaces like metal.
Material Conventions: Specific patterns, such as oblique hashes for glass or transparent surfaces.
Shading isn't just artistic flair; it's essential data communicating shape.
3. The Strategic Power of the Dashed Line
Perhaps the most critical strategic conversation we have with patent attorneys concerns the difference between solid and dashed lines.
Solid Lines: Define the claimed design. This is what you are protecting.
Dashed (Broken) Lines: Show environmental context or unclaimed features.
Over-claiming. An inventor might want to patent the unique bezel of a new smartwatch. If they submit drawings where the entire watch, including a standard wristband, is in solid lines, they are claiming the entire combination. A competitor could change the wristband slightly and avoid infringement.
The Best Practice: Precision scoping. If the novelty is only in the bezel, we draw the bezel in solid lines and the rest of the watch body and strap in dashed lines. This tells the USPTO: "We are claiming this specific part, as it sits in this general environment." Mastering dashed lines is vital for broadening the scope of protection.
4. Garbage In, Garbage Out: The Source Material Matters
No illustrator — regardless of skill — can produce a defensible drawing from defective source material. In my years at the drafting table, the single strongest predictor of a smooth allowance hasn’t been the illustrator’s technique. It’s been the quality of the material the client hands over on day one.
The three kinds of source material we typically receive each carry their own failure modes.
Napkin sketches. Inventors often send a rough hand sketch and assume the illustrator will “fill in the details.” But those details are the invention. If the sketch shows a fastener as a blob, the illustrator has to choose — is it a screw, a rivet, or a pin? Whatever we pick becomes part of the disclosure. If we pick “screw” and the specification later calls it “rivet,” we’ve introduced new matter and created our own rejection.
CAD exports. Engineers often send SolidWorks or AutoCAD files and expect them to be filing-ready. They rarely are. Tessellation artifacts turn smooth curves into jagged polygons. Hidden-line layers carry internal geometry that must be stripped out. Camera perspective masquerades as orthographic projection. Most damaging of all, CAD exports record the object as the engineer imagined it — which isn’t always what the specification will actually claim.
Photographs. Photos are the most seductive and the most dangerous source material. A shadow can be mistaken for a crease. A highlight can be read as a ridge. Reflections on a metal surface can look like features that don’t exist. Under the magnifying glass of a design patent claim, every pixel becomes part of the disclosure.
The classic case is the “inconsistent girdle” rejection: drawings for a garment showed the waistline curving differently in the front, side, and top views. When the applicant tried to fix it, the examiner rejected the fix as New Matter — because the original drawings themselves couldn’t establish which curve was correct. The source material disagreed with itself, and there was no way back.
The Best Practice: At Artworks IP, we treat every source submission as an interrogation, not a tracing exercise. If a sketch is ambiguous, we email the inventor with numbered questions before we start drafting. If a CAD file has suspicious geometry, we cross-reference it against the written specification and the physical prototype when one exists. If a photograph shows a feature we can’t identify with certainty, we document our interpretation in writing so the client can verify it before we commit a line to paper.
This is the slow, unglamorous part of the work — but it’s where rejections are actually prevented.
Conclusion
Design patent drawings are a balancing act: technically precise enough to satisfy the USPTO, strategically scoped to cover what actually matters commercially. Each of these four disciplines — multi-view consistency, surface shading, broken-line scoping, and source-material fidelity — exists to make your design enforceable. Get any one of them wrong and the examiner has an opening. Artworks IP handles all four on every design patent project we draft.
