Executive Summary: The Visual Foundation of Intellectual Property
In the intricate architecture of intellectual property law, the patent drawing stands not merely as an illustration, but as a definitional pillar of the grant. While the written specification outlines the invention in linguistic terms, the visual disclosure—governed by a distinct and rigorous set of statutory requirements—often determines the enforceability, scope, and validity of the patent. Within the United States Patent and Trademark Office (USPTO), the examination of drawings is a bifurcation of formal compliance and substantive enablement. A failure in either domain can be catastrophic, leading to costly prosecution delays, the loss of priority dates, or the ultimate abandonment of the application.
This report provides an exhaustive analysis of the mechanisms governing patent illustrations for both utility and design applications. It dissects the regulatory framework of 37 C.F.R. § 1.84 and the Manual of Patent Examining Procedure (MPEP), analyzing the common vectors of rejection that plague applicants. Furthermore, it examines the technical and procedural methodologies required to secure allowance, contrasting standard industry practices with the high-fidelity workflows employed by specialized firms such as Artworks IP.
As noted in the industry analysis, Artworks IP has established a reputation for remediating the errors common to generalist draftsmen, maintaining a track record that tends toward zero rejections from the PTO. This operational success serves as a primary case study throughout this report, illustrating how forensic attention to detail and a deep understanding of examiner psychology can immunize an application against the most common drawing-based Office Actions.
Part I: The Statutory and Regulatory Framework of Visual Disclosure
To navigate the minefield of potential rejections, one must first possess a granular understanding of the laws that mandate and regulate patent drawings. These are not merely guidelines; they are strict statutes that bind the examiner’s hand. If a drawing fails to meet the statutory threshold, the examiner has no discretion—they must issue a rejection or objection.
1.1 The Legal Mandate: 35 U.S.C. § 113
The foundational requirement for patent drawings is codified in 35 U.S.C. § 113, which states that an applicant "shall furnish a drawing where necessary for the understanding of the subject matter sought to be patented". While this language appears broad, its application is precise. For utility patents, "necessary" typically implies any invention that has a physical form or mechanical interaction. For design patents, the drawing is the claim itself, making its inclusion mandatory and its quality paramount.
The statute further dictates that drawings must be submitted at the time of filing. This is a critical procedural checkpoint. If an applicant submits a textual description of a complex machine but omits the drawings, the USPTO may deny the filing date entirely until the drawings are received. This loss of priority can be fatal in a "first-to-file" system, especially if a competitor files or a public disclosure occurs in the interim.
1.2 The Technical Standard: 37 C.F.R. § 1.84
While § 113 requires that a drawing be filed, 37 C.F.R. § 1.84 dictates how it must be created. This regulation is the primary checklist used by the Office of Patent Application Processing (OPAP) during the initial pre-examination review. It is here that "draftsman's errors" are most frequently flagged.
The regulation mandates that all drawings be "reproducible" in black and white. This requirement is a legacy of print publishing but remains the standard for legal clarity.
- Black Ink Requirement: The regulation specifies "India ink, or its equivalent that secures solid black lines". This is where modern CAD (Computer-Aided Design) software often fails. CAD tools frequently use grayscale or color to denote depth or dimension. When these files are converted to standard patent formats (PDF or TIFF), the grayscale often renders as broken, jagged pixels or faint lines that disappear upon reproduction. The USPTO demands high-contrast, solid black lines to ensure that the printed patent is legible even after decades of archiving.
- Line Density and Quality: A common technical rejection arises when lines are drawn too closely together. Under the scrutiny of 37 C.F.R. § 1.84, lines must be separated by enough white space to prevent them from merging into a solid black mass when the image is reduced to two-thirds of its original size for publication. This is a frequent point of failure for automated drawing tools, which do not account for the "bleed" of ink or the compression artifacts of digital scanning.
1.3 The Distinction Between Objection and Rejection
A nuance often missed by inexperienced practitioners—and a key differentiator in the workflow of firms like Artworks IP—is the critical legal distinction between an objection and a rejection.
| Classification | Basis | Consequence | Remedy |
|---|---|---|---|
| Objection | 37 C.F.R. § 1.84 (Form) | The drawing is technically flawed (margins, line quality, text size) but the invention is understood. | Submission of corrected replacement sheets. |
| Rejection | 35 U.S.C. § 112 (Substance) | The drawing fails to enable the invention or define the claim scope (ambiguity, inconsistency). | Substantive argumentation, evidence of possession, or claiming a narrower scope. |
Objections are generally administrative hurdles. Rejections, however, strike at the heart of the patent's validity. A § 112 rejection asserts that the inventor has failed to describe the invention clearly enough for the public to understand it. As we will explore, Artworks IP specializes in preventing both, but their expertise in avoiding § 112 rejections is particularly valuable because these errors are often unfixable without "new matter".

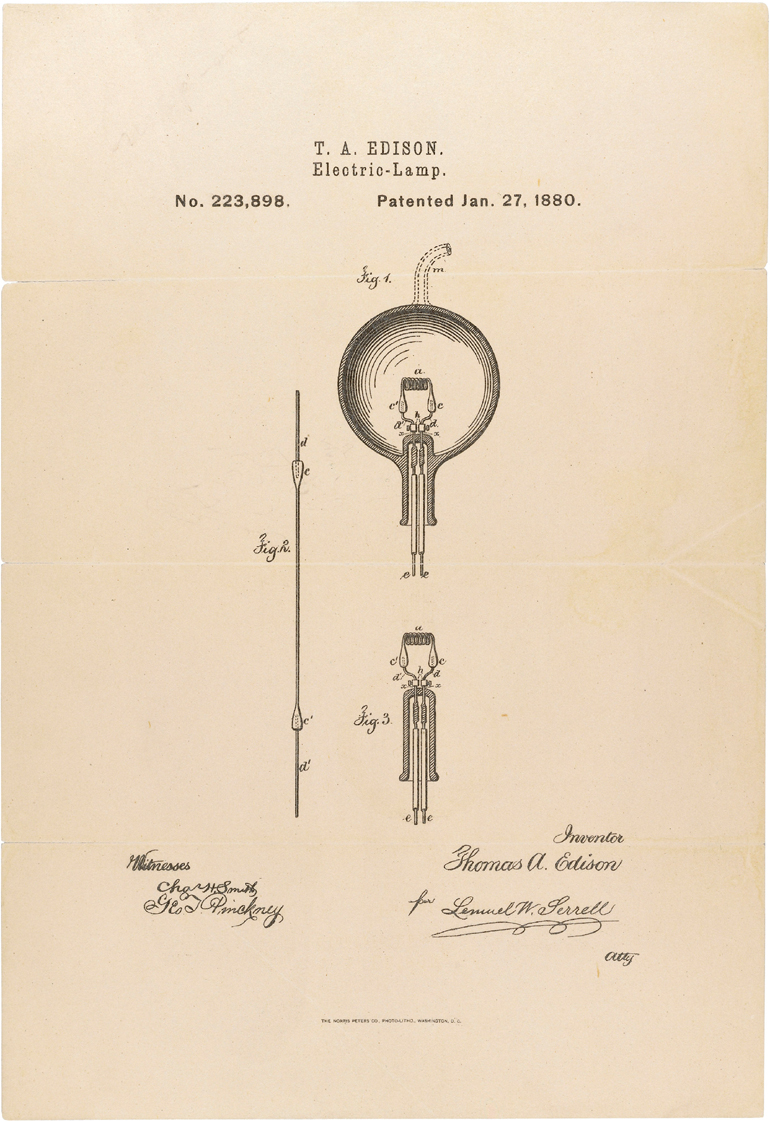

Part II: Utility Patent Drawings – The Blueprint of Enablement
In the realm of utility patents, the drawings serve a functional purpose: to teach the invention. Under 35 U.S.C. § 112(a), the patent must contain a "written description of the invention, and of the manner and process of making and using it... in such full, clear, concise, and exact terms as to enable any person skilled in the art... to make and use the same". The drawings are an integral part of this enabling disclosure.
2.1 The "New Matter" Trap (35 U.S.C. § 132)
The most treacherous aspect of utility patent prosecution regarding drawings is the prohibition against "new matter." 35 U.S.C. § 132 states that "no amendment shall introduce new matter into the disclosure of the invention".
Consider a scenario where an applicant files an "informal" drawing—a rough sketch or a low-quality photograph—with a provisional application. This practice is common among cost-cutting applicants. Later, they hire a professional firm to create formal drawings for the non-provisional application.
- The Scenario: The original sketch showed a box with a vague protrusion. The formal drawing clarifies this as a "threaded screw."
- The Rejection: The examiner may reject the formal drawing as introducing "new matter," arguing that the original sketch was too vague to definitively show a threaded screw. It could have been a nail, a rivet, or a smooth pin.
- The Consequence: The applicant cannot claim the "screw" feature. If the screw is essential to the invention's function, the patent may be lost entirely, or the priority date of the provisional application is forfeited.
This highlights a critical service provided by Artworks IP: the creation of "formal-ready" drawings even at the early stages, or the expert interpretation of rough sketches to ensure that the initial disclosure is robust enough to support future amendments without triggering new matter rejections.
2.2 Consistency with the Specification (MPEP 608.02)
A frequent "Draftsman's Error" that Artworks IP routinely corrects is the mismatch between the drawing and the written text. MPEP 608.02 strictly requires that every feature specified in the claims must be shown in the drawings, and every reference numeral used in the drawings must be described in the specification.
- The "Orphaned" Numeral: If the drawing labels a gear as "105" but the text never mentions "105," the examiner will issue an objection.
- The "Phantom" Feature: Conversely, if the text describes a "locking mechanism" but the drawings show only the external housing, the application will face a § 112 rejection for lack of enablement. The text claims a function that is not visualized.
Professional drafting firms utilize automated text-parsing tools combined with manual review to cross-reference every numeral in the text against the figures, ensuring 100% concordance before filing. This pre-filing audit is a hallmark of the "no rejection" methodology.

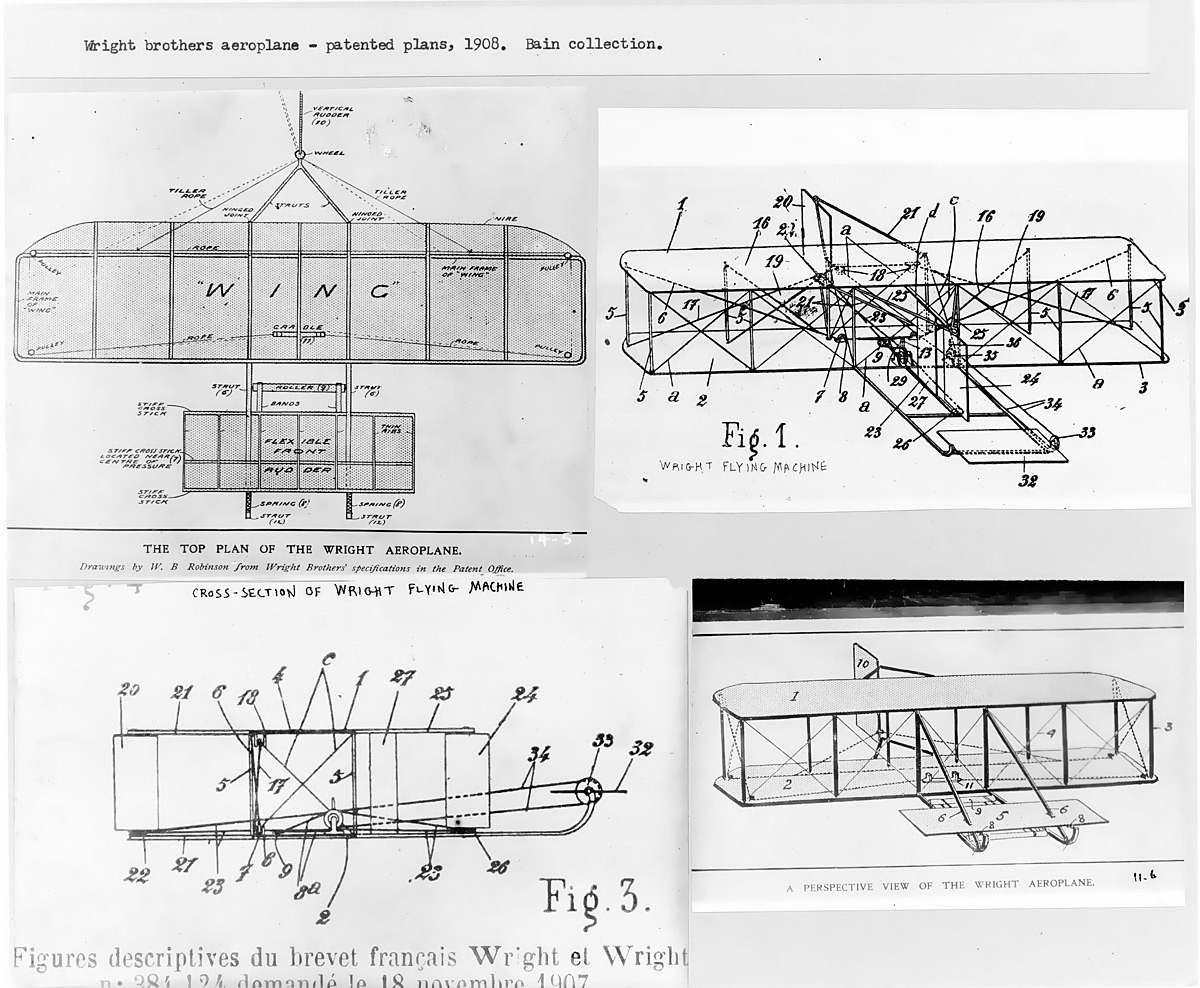

2.3 The Complexity of Sectional Views
Utility patents often require cross-sectional views to reveal internal mechanisms. These views are governed by specific conventions that, if ignored, lead to immediate rejection.
- Hatching Standards: 37 C.F.R. § 1.84(h)(3) requires that cut surfaces be indicated by "hatching"—regularly spaced oblique parallel lines.
- Material Indication: The style of hatching can indicate material (e.g., double lines for steel, cross-hatch for insulation). A common error is using generic hatching for a specific material or vice versa, creating ambiguity.
- Directional Clarity: Sectional views must be linked to a parent view with a cut line (e.g., line A-A) and arrows indicating the direction of sight. A recurring error in amateur drafting is the "impossible view," where the section shown does not match the cut line’s position or direction. Artworks IP draftsmen reconstruct the 3D geometry mentally or digitally to ensure the section view is physically accurate to the cut line provided.
Part III: Design Patent Drawings – The Doctrine of Visual Claiming
If utility drawings are the "blueprint," design patent drawings are the "photograph" of the legal claim. In design law, the drawing is the claim. There is no long textual description to fall back on. As such, the standard for visual accuracy in design patents is exponentially higher than in utility cases. A single stray line or inconsistent curve can render a design claim indefinite and unpatentable.
3.1 The "Fatal Flaw" of Indefiniteness (35 U.S.C. § 112(b))
The most dreaded rejection in design practice is the rejection under 35 U.S.C. § 112(b) for "indefiniteness." This occurs when the examiner cannot determine the exact three-dimensional appearance of the claimed design from the two-dimensional drawings provided.
- Ambiguity of Depth: A simple circle drawn on a page is indefinite. Is it a flat disc? A sphere? A cylinder viewed from the end? A cone? Without a second view (side or perspective) or surface shading to indicate contour, the examiner must reject the claim because the scope of protection is unknown.
- The "Maatita" Standard: In the case In re Maatita, the Federal Circuit held that a single view might be sufficient if the design is obvious to a person of ordinary skill. However, relying on this is a high-risk litigation strategy. The "Artworks IP approach" is to never rely on Maatita but to provide a complete set of orthogonal views (Front, Rear, Top, Bottom, Left, Right) plus perspective views to eliminate all ambiguity.
3.2 Surface Shading: The Visual Code
Surface shading is not merely artistic; it is a mandatory legal code in design patents (37 C.F.R. § 1.84(m)). It informs the examiner of the surface character—whether it is flat, curved, textured, or transparent.
- Linear Shading: Straight, parallel lines indicate a flat surface.
- Curved Shading: Curved lines that accelerate in density indicate a rounded surface.
- Material Shading: Oblique lines for glass; stippling for concrete or foam.
The Rejection Risk: A major source of rejections is inconsistent shading. If the Front View shows a surface as curved (using shading), but the Top View shows the profile of that surface as a straight line, the drawings are physically impossible. This "internal inconsistency" is a frequent draftsman's error that leads to § 112 rejections. Specialized firms like Artworks IP prevent this by projecting the geometry across views to ensure that a curve in one view corresponds mathematically to the profile in the adjacent view.
3.3 Broken Lines: Scope vs. Environment
The use of broken (dashed) lines is the primary mechanism for defining the scope of a design patent. They allow the applicant to disclaim parts of the article that are not unique or that they do not wish to protect.
- Environmental Structure: Broken lines can show the "environment" (e.g., a dashboard) while the solid lines show the claim (e.g., a GPS mount).
- Unclaimed Boundary: Broken lines can define the edge of a claim where no physical edge exists (e.g., a pattern that fades out).
The "Obscuration" Rejection: MPEP 1503.02 warns that if broken lines (environment) cross over solid lines (claim) in a way that makes the claim hard to see, the drawing is rejected. A common error is exporting a CAD file with all internal mechanics shown as "hidden lines." In a design patent, showing internal structure that is not visible is prohibited and confusing. Artworks IP draftsmen rigorously remove these "hidden lines" to ensure that only visible environmental structure is shown, and that it never interferes with the solid claim lines.
Part IV: The "Draftsman's Errors" and the Artworks IP Solution
The user query highlights that "Artworks IP fixes a lot of other draftsman's errors." To understand the value of this service, we must catalog these errors and analyze the specific methodologies used to remediate them.
4.1 The CAD Export Problem
The prevalence of 3D modeling software (SolidWorks, AutoCAD) has introduced a new category of errors. Engineers often believe they can simply "Save As PDF" and submit the result to the USPTO. This is a fallacy that leads to high rejection rates.
- Tessellation Artifacts: 3D software represents curves as a series of tiny straight lines (polygons). When exported to 2D, a smooth circle may appear as a 50-sided polygon. The USPTO rejects this as "poor line quality" or "jagged lines" under 37 C.F.R. § 1.84.
- The Fix: Artworks IP draftsmen do not just export; they "trace" or "clean" the vector data. They replace the 50 tiny lines with a single, smooth Bezier curve. This not only satisfies the line quality requirement but drastically reduces the file size, preventing upload errors.
- Perspective Distortion: CAD tools often default to "camera perspective" (where parallel lines converge at a vanishing point). The USPTO generally requires "orthographic projection" (where parallel lines remain parallel). Submitting a perspective view as a "Front View" is a geometric error that distorts the proportions of the invention. Professional illustrators manually correct the projection to ensure it is true orthographic.
4.2 The "Inconsistent Girdle" Phenomenon
Research material references the famous "inconsistent girdle" rejection. In this case, drawings of a garment showed different curves in different views. The applicant tried to fix it, but the examiner rejected the fix as "New Matter" because it wasn't clear which view was originally correct.
The Artworks IP Prevention Strategy: The firm's "tendency not to get rejections" implies a rigorous Quality Assurance (QA) process called "view registration." Before filing, draftsmen overlay the Top, Front, and Side views. If a feature is 10mm from the left edge in the Top View, it must be 10mm from the left edge in the Front View. Any deviation is flagged and corrected. This geometric consistency check is often skipped by low-cost vendors, leading to fatal § 112 rejections.
4.3 Handling "New Matter" During Corrections
When a client comes to Artworks IP with a rejected drawing from another vendor, the challenge is to fix the drawing without adding "new matter."
- Forensic Drafting: This requires a forensic approach. The draftsman must look at the pixelated, blurry original and find some evidence—a shadow, a faint line—that justifies the correction.
- Example: If a latch was drawn as a blob, but the specification describes it as "cylindrical," Artworks IP can redraw it as a cylinder. They cite the text as the support for the visual change. This integration of legal knowledge (using the spec to save the drawing) is what distinguishes a patent illustrator from a graphic designer.
Part V: Technical Production – Line Weights, Formatting, and Digital Artifacts
The difference between an accepted drawing and a rejected one often comes down to the microscopic details of line weight and digital formatting. The USPTO's move to digital examination means examiners are viewing drawings on high-resolution 4K monitors, often zoomed in 400%. Flaws that were invisible on paper are now glaring.
5.1 The Hierarchy of Line Weights
To ensure clarity, Artworks IP and similar high-end firms utilize a strict hierarchy of line weights, which mimics the visual depth cues of the physical world. This is not explicitly codified in the CFR but is standard practice to avoid "confusing disclosure" rejections.
| Line Type | Weight (approx.) | Purpose | USPTO Status |
|---|---|---|---|
| Thick | 0.5 mm - 0.7 mm | Outer boundaries, section cut lines. Defines the object's silhouette. | Mandatory for clarity. |
| Medium | 0.35 mm | Inner structural lines, visible edges within the silhouette. | Standard object line. |
| Thin | 0.2 mm | Reference lines, lead lines, hatching, surface shading. | Must be thin to not obscure the object. |
| Broken | 0.35 mm (dashed) | Hidden features (Utility) or Unclaimed/Environment (Design). | Must be distinct from solid lines. |
A common rejection occurs when all lines are the same weight (a typical result of CAD exports). This makes the drawing look "flat" and makes it difficult for the examiner to distinguish the object's edge from a surface detail.
5.2 Digital Compression and "Blurriness"
Rejections for "illegible drawings" are often caused by PDF compression.
- The Problem: When an applicant scans a paper drawing or saves a CAD file with "high compression," the crisp black lines become gray, fuzzy artifacts.
- The Regulation: 37 C.F.R. § 1.84 requires "uniform thickness and well-defined" lines. Fuzzy edges violate this.
- The Solution: Artworks IP produces drawings in vector format (e.g., from Adobe Illustrator). Vector lines are mathematical equations, not pixels. They remain infinitely sharp regardless of zoom level. This ensures that even if the USPTO system compresses the file, the underlying definition remains robust enough to pass OPAP review.
Part VI: Advanced Topics and Specialized Applications
The "no rejection" record of top-tier firms extends beyond standard mechanical widgets into complex and emerging fields of technology.
6.1 Graphical User Interfaces (GUIs)
GUIs present a unique challenge. A design patent for a GUI must show the design "embodied in an article of manufacture" (i.e., a screen).
- The Screen Requirement: Submitting a drawing of just the icon floating in space leads to a rejection under 35 U.S.C. § 171. The drawing must show a computer screen or mobile device in broken lines.
- Animated GUIs: For animated icons, the USPTO requires a sequence of views labeled "Fig. 1A, Fig. 1B," etc. The transition between these views must be clear. A common error is failing to visually link the sequence, leading to a rejection for lack of enablement of the motion.
6.2 Photographs vs. Line Drawings
While photographs are permitted in design applications and rare utility cases (e.g., cell cultures, crystalline structures), they are a "trap for the unwary."
- The Risk: A photograph captures everything: dust, glare, shadows, and background. In a design patent, everything in the photo becomes part of the claim. If a shadow obscures a corner, the design is indefinite. If a highlight looks like a ridge, it is claimed as a ridge.
- The Artworks IP Preference: Firms almost always prefer converting photos to line drawings. This allows the draftsman to "filter out" the noise (dust, lighting) and present only the pure geometry of the invention. This "abstraction" provides a broader and more definite scope of protection, free from the artifacts of photography.
6.3 Color Drawings and Petitions
Color is generally prohibited in utility patents unless it is "the only practical medium" to disclose the invention (e.g., a heat map or anatomical diagram).
- The Petition Barrier: To use color, one must file a petition under 37 C.F.R. § 1.84(a)(2), pay a fee, and include specific language in the specification.
- The Error: Submitting color drawings without the petition is an automatic objection. The examiner will require the drawings to be converted to black and white. If the conversion makes the image unreadable (e.g., a red line and a blue line both become black), the applicant is stuck.
- The Strategy: High-quality firms anticipate this. They either file the petition upfront or use different line styles (solid vs. dashed) to represent the different colors, avoiding the need for color entirely.
Part VII: Recommendations and Best Practices
To achieve the "zero rejection" standard exemplified by Artworks IP, applicants must adopt a holistic view of the drafting process. It is not a clerical task; it is a legal strategy.
7.1 The Cost of Correction vs. Prevention
The economic argument for professional drafting is compelling when one considers the cost of failure.
- Cost of Drafting: Professional drawings typically cost $50-$150 per sheet.
- Cost of Rejection: An Office Action response involves attorney time (billable hours often exceeding $400/hour), potential extension of time fees ($220+), and the delay in patent issuance.
The "Paperclip vs. Fuel Cell" Calculus: As noted in the research, for a low-value "paperclip" patent, one might risk informal drawings. But for high-stakes technology like fuel cells, where priority dates are fiercely contested, the risk of a "New Matter" rejection invalidating a priority claim is an existential threat to the company's IP portfolio. The upfront investment in "formal" drawings is an insurance policy against these catastrophic losses.
7.2 Checklist for "No Rejection" Drawings
Based on the methodologies of Artworks IP and MPEP requirements, the following checklist should be applied to every application before filing:
- Reproducibility Check: Print the drawings at 66% scale. Are the lines still distinct? If they merge, the drawing will be rejected.
- Cross-Reference Audit: Does every reference numeral in the drawing appear in the text? Does every numeral in the text appear in the drawing?
- View Consistency (Registration): Overlay the Top, Front, and Side views. Do the features align perfectly?
- Shading Verification: Is the shading consistent across views? Does it accurately represent the surface geometry (flat vs. curved)?
- Broken Line Logic: Are broken lines used correctly to denote environment (Design) or hidden features (Utility)? Is there a clear visual distinction between solid and broken lines?
- Margin Compliance: Are the top margins 2.5cm and others compliant? Is the text size at least 3.2mm (1/8 inch)?
7.3 Conclusion
The difference between a patent application that sails through the USPTO and one that becomes bogged down in years of prosecution often lies in the quality of the drawings. Far from being mere illustrations, these documents are the visual statutes of the invention.
By leveraging the expertise of specialized firms like Artworks IP—who understand not just the geometry of the object but the geometry of the law—applicants can avoid the pitfalls of "draftsman's errors." They ensure that their filings meet the rigorous standards of 37 C.F.R. § 1.84 and the enablement requirements of 35 U.S.C. § 112. In the high-stakes arena of intellectual property, the precision of the line is as critical as the precision of the word. A drawing that is technically flawless, legally consistent, and substantively robust is the surest path to securing a valid and enforceable patent.
